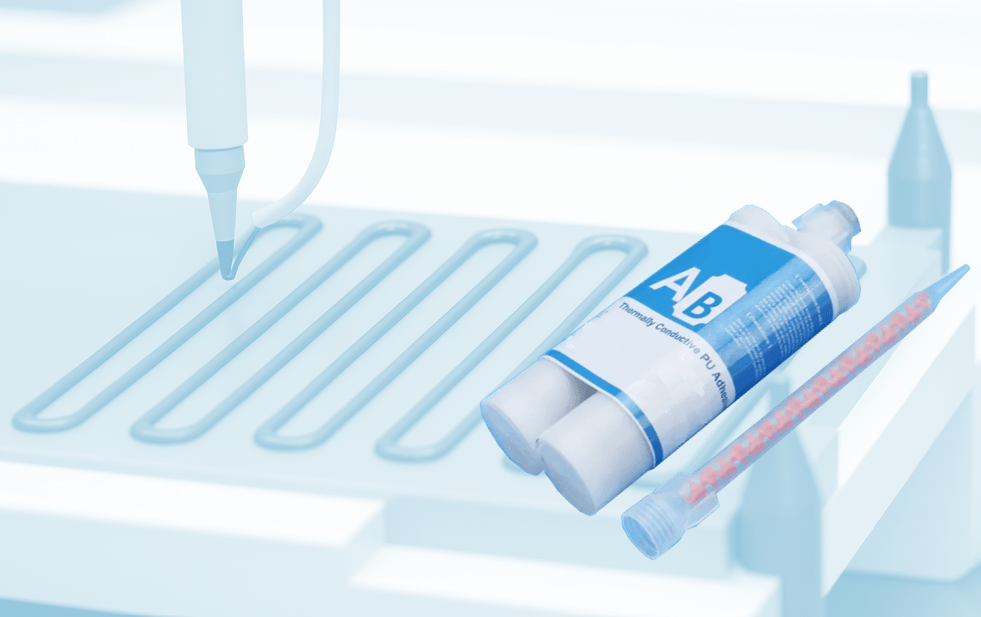

Thermal PU Adhesive
Thermal Interface Material Thermal PU AdhesiveThermal Interface Material
The thermal conductive polyurethane adhesive delivers powerful structural bonding and efficient heat dissipation in one solution. With excellent chemical resistance and long-term reliability, it is the ideal choice for EV battery packs, high-power electronics, communication systems, and LED lighting applications where performance and durability matter most.
Features :
- Thermal conductivity of 1.0–2.0 W/m·K.
- Two-part system curing at room or elevated temperatures.
- 100% solids, non-toxic, and emission-free.
- Strong adhesion to multiple substrates, including aluminum and PET.
- Excellent chemical resistance for long-term durability.
Applications :
- EV battery packs
- High-power electronics
- Communication equipment
- LED lighting
| Model | Hardness, Shore D | Density, g/cm³ | Tensile Strength, MPa | Elongation | Shear Strength, MPa | Thermal Conductivity W/m·K | Operating Temp., ℃ |
|---|---|---|---|---|---|---|---|
| JSPU-4500A-10AB | 55±5 | 1.87 | 17 | 60% | 16 | 1.0 | -50~120 |
| JSPU-4500A-15AB | 70±5 | 1.87 | 16 | 15% | 10 | 1.5 | -50~120 |
| JSPU-4500A-20AB | 70±10 | 2.45 | 14 | 30% | 9.5 | 2.0 | -50~120 |
