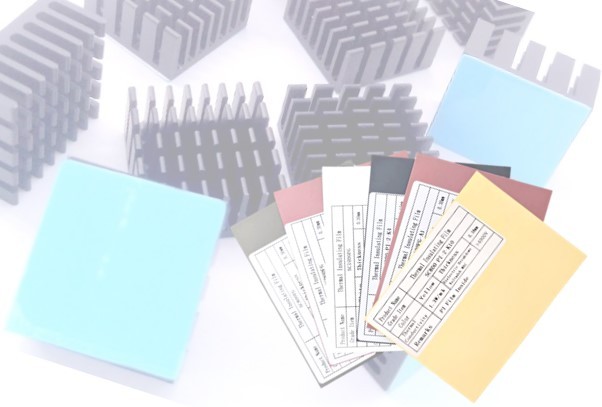

Thermal Film
Thermal Film Thermal Interface MaterialThermal Interface Material
The thermal film offers optional fiberglass or polyimide as a reinforcement carrier. Both sides of the carrier are coated with a silicone-based compound filled with thermally conductive materials, delivering efficient heat transfer along with high mechanical strength and excellent electrical insulation.
Features :
- Thermal conductivity 0.8–5.0 W/m·K; available with fiberglass or polyimide reinforcement.
- High mechanical strength and excellent electrical insulation.
- Supports custom die-cutting.
- UL94 V-0 flame resistance.
- Compliant with RoHS, Halogen-Free, and REACH standards.
Applications :
- Uninterruptible Power Supplies (UPS)
- MOSFETs
- Switching power supplies
- Power amplifiers
- Electric vehicle motor controllers
| Model | Substrate | Thickness, mm | Thermal Conductivity W/m·K | Breakdown Voltage, AC | Hardness, Shore A | Operating Temp., ℃ |
|---|---|---|---|---|---|---|
| JSSC-0800SG | Fiberglass | 0.3~0.5 | 0.8 | > 4 kV | 45 | -50~200 |
| JSSC-0900FG | Fiberglass | 0.23~0.5 | 2.0 | > 4 kV | 45 | -50~200 |
| JSSC-1000FG | Fiberglass | 0.25~0.5 | 3.5 | > 4 kV | 90 | -50~200 |
| JSSC-0800PI-2-K4 | PI Film | 0.15 | 0.9 | > 4 kV | 90 | -50~200 |
| JSSC-0800PI-2-K6 | PI Film | 0.15 | 1.1 | > 4 kV | 90 | -50~200 |
| JSSC-0800PI-2-K10 | PI Film | 0.15 | 1.3 | > 4 kV | 90 | -50~200 |
