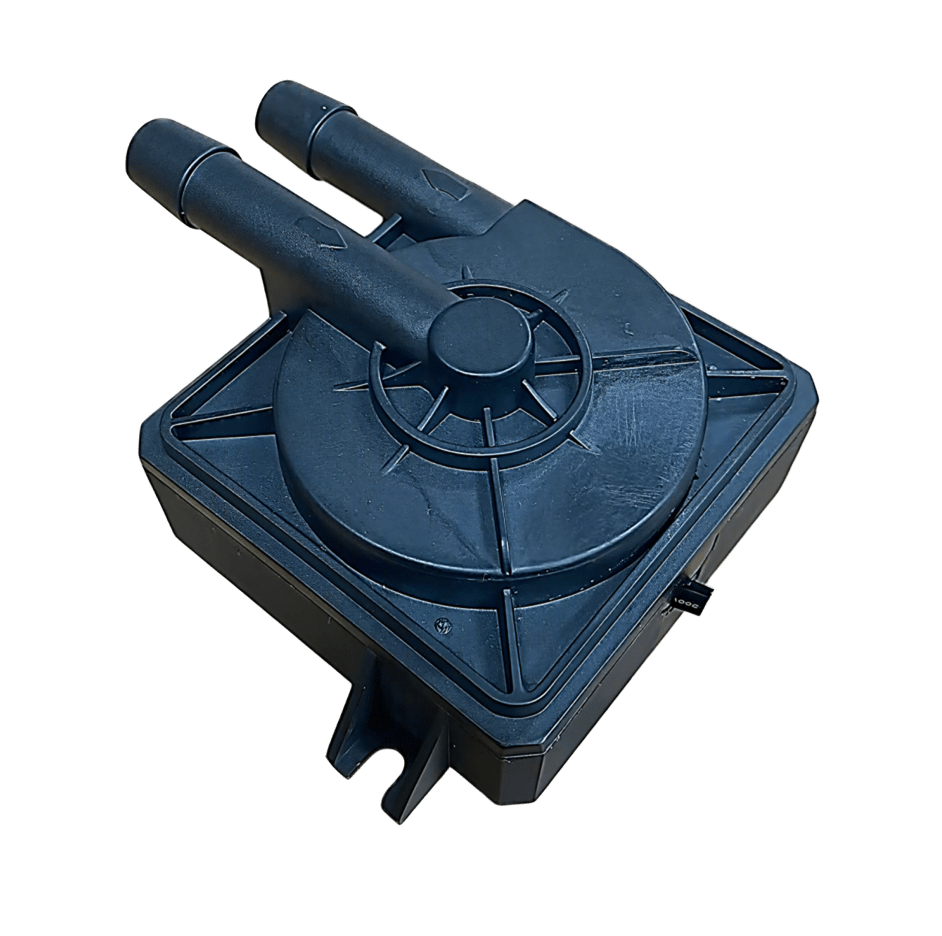

JSP603812TB03

Water Pumps

Key Parameters

• Rated Voltage : 12V DC
• Operating Voltage Range : 6–18V DC
• Rated Current : 0.55A ±10% A
• Input Power : 7W
• Maximum Flow Rate : 6.0±15% L/min
• Maximum Head : 2.4±0.5M
• Noise : ≤30 dBA at 1 M
• Service life: 10,000 hours
• RoHS Compliant

Operating Conditions

• Ambient temperature: -25°C to 70°C
• Liquid temperature: 0°C to 70°C
• Humidity: below 90% RH

Typical Applications

• EV Charger Cooling Systems
• Battery Energy Storage Systems (BESS)
• Industrial Laser Cooling
• Electronic Equipment Thermal Management
• Compact Liquid Cooling Loops
• Industrial Water Circulation Systems

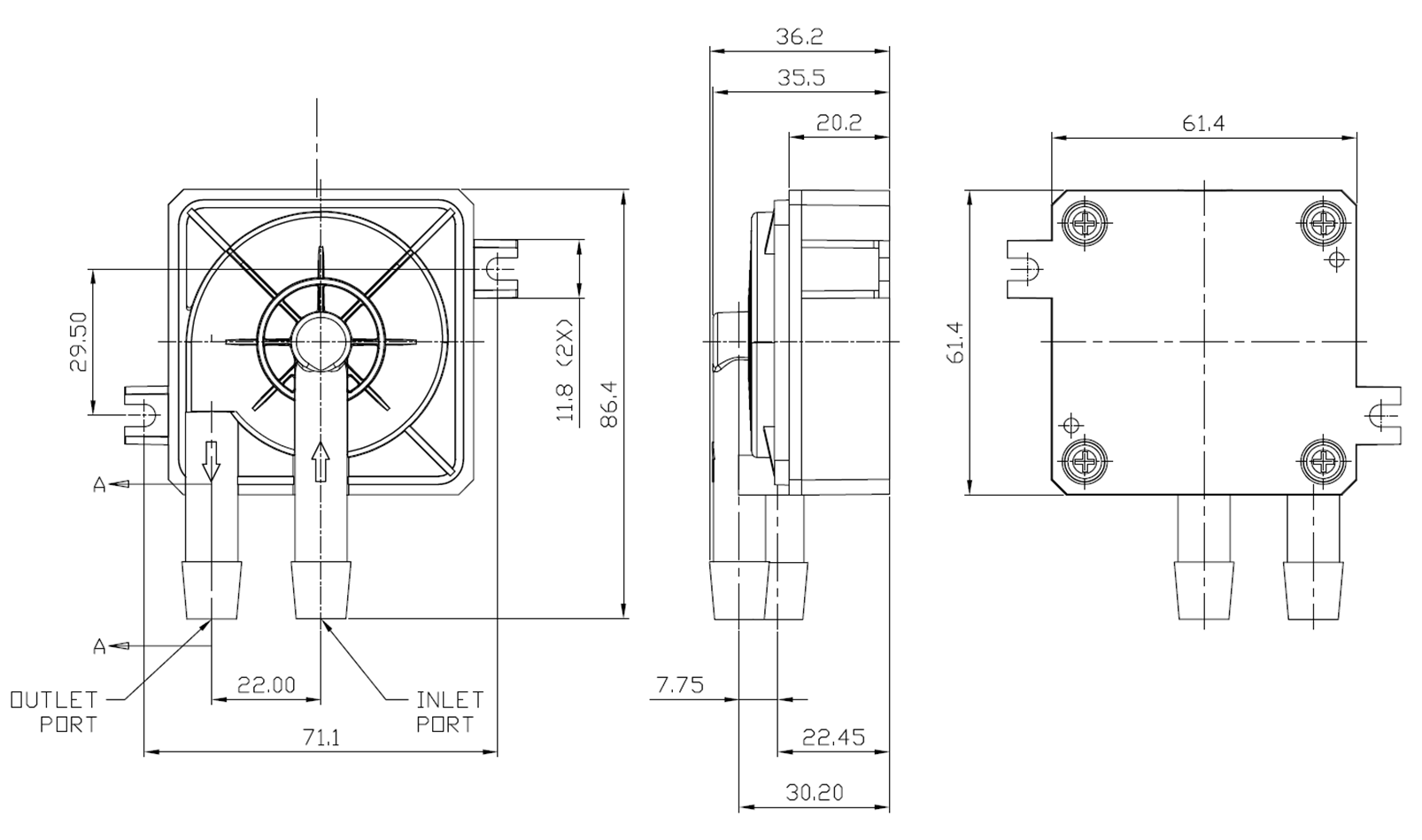

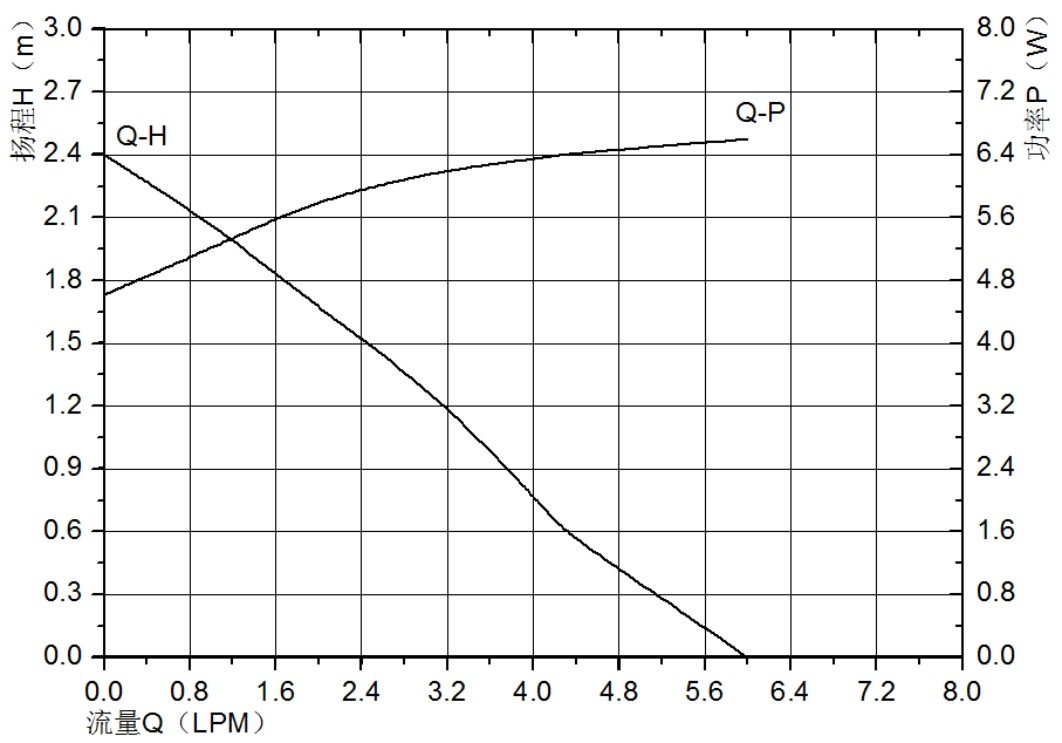

Dimension Drawing / Performance Curve
