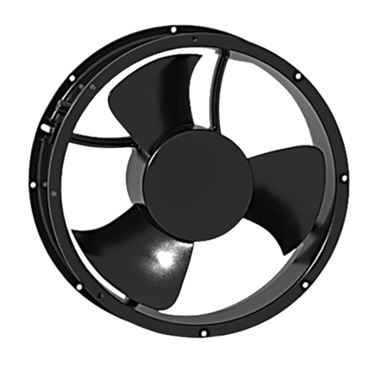

JSE25489
EC Axial EC Fans Fans & BlowersFramesize: Ø254×89 mm
- FRAME : ALUMINUM; IMPELLER : PBT (94V-0)
- OPERATING TEMP.: -10°C~70°C
- STORAGE TEMP.: -40°C~75°C
- CUSTOM WIRE AND CONNECTORS AVAILABLE
- WEIGHT :2600g
- SAFETY : CE
JSE25489 Products List
Model No. |
Bearing Type |
Voltage (DC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|---|---|---|---|---|---|---|---|---|
| JSE2548911HB01 | Two Ball | 110 | 0.545 | 60.0 | 2500 | 739.23 | 0.852 | 65.4 |
| JSE2548922HB01 | Two Ball | 220 | 0.273 | 60.0 | 2500 | 739.23 | 0.852 | 65.4 |
