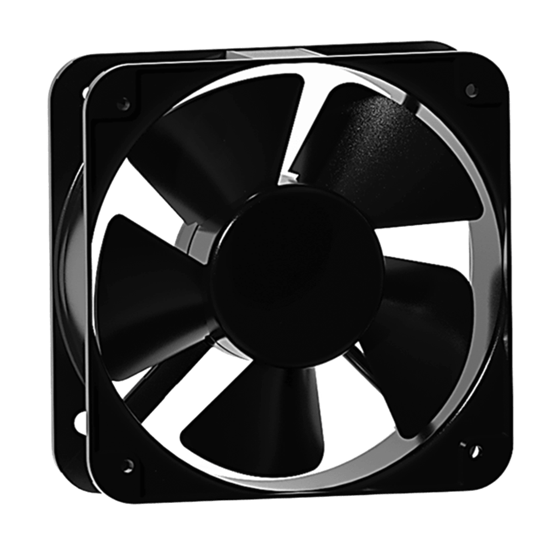

JSE20060
EC Axial EC Fans Fans & BlowersFramesize: 200x200x60 mm
- FRAME : ALUMINUM; IMPELLER : PBT (94V-0)
- OPERATING TEMP.: -10°C~70°C
- STORAGE TEMP.: -40°C~75°C
- CUSTOM WIRE AND CONNECTORS AVAILABLE
- WEIGHT :2800g
- SAFETY : CE
JSE20060 Products List
Model No. |
Bearing Type |
Voltage (AC) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|---|---|---|---|---|---|---|---|
| JSE2006011LB01 | Two Ball | 110 | 40.0 | 2000 | 324.0 | 0.418 | 58.6 |
| JSE2006022LB01 | Two Ball | 220 | 40.0 | 2000 | 324.0 | 0.418 | 58.6 |
| JSE2006011MB01 | Two Ball | 110 | 50.0 | 2500 | 407.92 | 0.653 | 62.4 |
| JSE2006022MB01 | Two Ball | 220 | 50.0 | 2500 | 407.92 | 0.653 | 62.4 |
| JSE2006011HB01 | Two Ball | 110 | 70.0 | 3000 | 492.43 | 0.893 | 68.5 |
| JSE2006022HB01 | Two Ball | 220 | 70.0 | 3000 | 492.43 | 0.893 | 68.5 |
