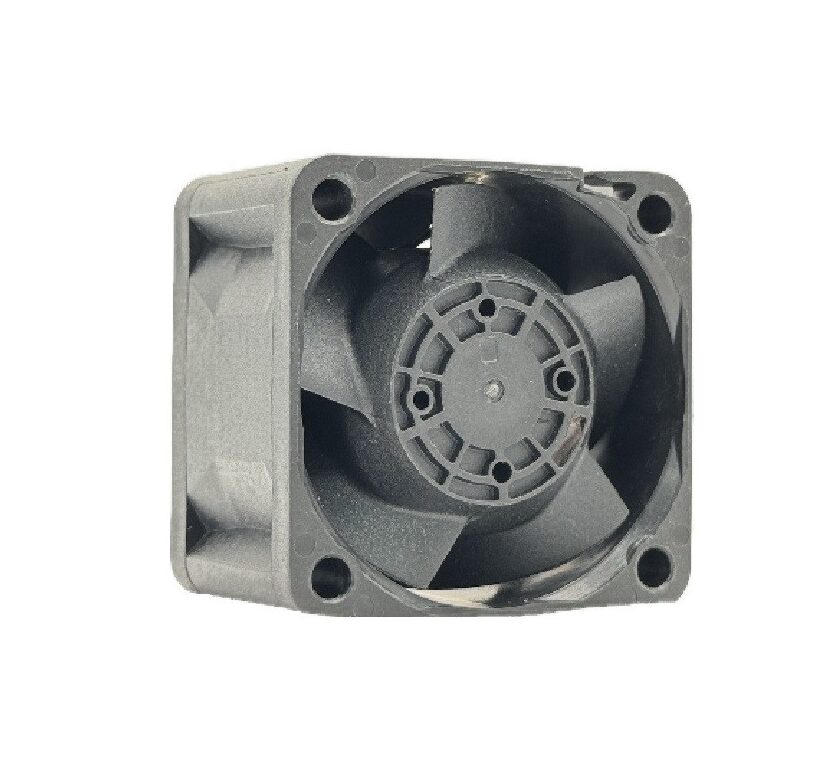

JHD04028
DC Fans Fans & Blowers High PerformanceFramesize: 40x40x28 mm
- MOTOR : DC brushless motor
- FRAME : PBT (94V-0) ; IMPELLER : PBT(94V-0)
- OPERATING TEMP.: -10°C~70°C
- STORAGE TEMP.: -40°C~70°C
- WEIGHT : 49g
- SAFETY : UL / CUL / CE
JHD04028 Products List
Model No. |
Bearing Type |
Voltage (DC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|---|---|---|---|---|---|---|---|---|
| JHD0402812VB1A01 | Two Ball | 12 | 1.95 | 23.4 | 30000 | 35.02 | 5.888 | 66.0 |
| JHD0402812WB1A01 | Two Ball | 12 | 3.50 | 42.0 | 35000 | 41.20 | 8.112 | 72.5 |
