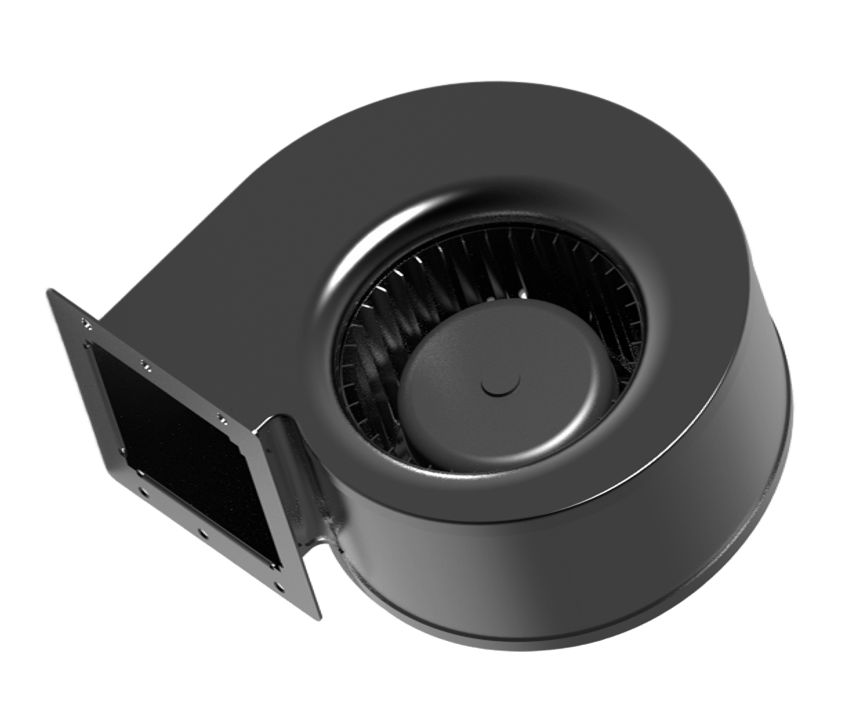

JSB15092
DC Blowers StandardFramesize: 244x226x104 mm
- MOTOR : DC brushless motor
- FRAME : SPCC ; IMPELLER : SPCC
- OPERATING TEMP.: -10°C~70°C
- STORAGE TEMP.: -40°C~70°C
- SAFETY : CE
JSB15092 Products List
Model No. |
Bearing Type |
Voltage (DC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|---|---|---|---|---|---|---|---|---|
| JSB1509224HB1A01 | Two Ball | 24 | 6.1 | 146.4 | 2200 | 328.1 | 0.996 | 60.0 |
| JSB1509248HB1A01 | Two Ball | 48 | 3.1 | 148.8 | 2200 | 328.1 | 0.996 | 60.0 |
